Product Description:

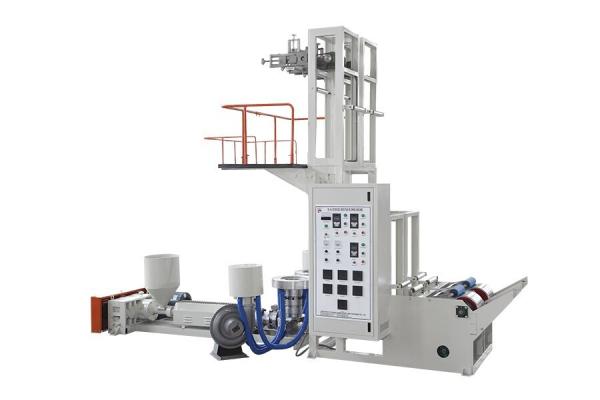

This double die head film blown machine is extensively employed for the extrusion of HDPE, LDPE, LLDPE, and biodegradable materials, particularly in the production of packaging films. The main motor is equipped with an inverter for speed control, which improves efficiency and reduces electricity consumption. The adjustable forming frame simplifies operation and ensures consistently high-quality output. It can effectively cool films of various sizes.
Technical Parameters:
| Model | SL-50-(300*2) | SL-65-(600*2) |
| Screw diameter | 50mm | 65mm |
| Screw length proportion | 30:1 |
| Screw Material | 38 CrMoal
38 CrMoal surface with nitride, with special mixed segment |
| Blowing material | HDPE ,LDPE, LLDPE,
HDPE ,LDPE, LLDPE biodegradable and reproducible material |
| Film blowing width | (100-250mm)*2 | (100-550mm)*2 |
| Film blowing thickness | LDPE:0.01mm-0.2mm, HDPE:0.01mm-0.15mm |
| Film blowing thickness | 0.02mm-0.10mm | |
| Output | 10-50KG/H | 30-80KG/H |
| Total power | 30KW | 50KW |
| Total weight | 2800KGS | 3800KGS |
| Overall size(L*W*H) | 4800*2200*3800mm | 4800*2600*4500mm |
Main Features:
- 1. Produce high-quality films.
- 2. Produce multi-layer composite films.
- 3. Produce films with special shapes.
- 4. Produce high-efficiency films.
Applications:
The double-die film extrusion blowing machine is renowned for its efficiency, high quality, and versatility, making it an excellent choice for a wide range of applications. It has the capability to manufacture various film types, meeting the specific demands of industries like packaging, printing, electronics, and medical applications.
Support and Services:
Double Head Film Blowing Machine Technical Support and Service
Our technical support and service for this Film Blowing Machine is available.
Our engineers and technicians are available to answer your questions and help you troubleshoot any issue you may have.
We also offer a range of on-site services such as installation, maintenance, and repair of the machine.
We are committed to providing you with the highest level of customer service and satisfaction.
Packing and Shipping:
Packaging and Shipping for Double Head Film Blowing Machine
The Double Head Film Blowing Machine will be carefully wrapped with plastic film and shipped to the customer's specified port.
Company Show:
FAQ:
-
1. What is a double head film extrusion blowing machine?
A double head film extrusion blowing machine is a versatile piece of equipment designed for producing various types of films efficiently. It can be configured for different modes to meet specific production requirements.
2. What are the key features of this film blowing machine?
Our double head film extrusion blowing machine boasts high efficiency, top-quality output, and multifunctionality. It can adapt to a wide range of applications and produce different types of films to cater to diverse industry needs.
3. In what industries can this film blowing machine be used?
This film blowing machine finds applications in industries such as packaging, printing, electronics, and medical fields. Its versatility makes it suitable for addressing the unique requirements of these sectors.
4. What types of films can it produce?
The double head film extrusion blowing machine is capable of producing a variety of films, including single-layer and multi-layer films, as well as films with special shapes. It can meet your specific film production needs.
5. How does it ensure high efficiency?
This film blowing machine is equipped with advanced features, including automatic roller changes and precise control through PLC synchronization. These features contribute to its high efficiency and reliable performance.
6. Can it handle different materials?
Yes, this film blowing machine is designed to work with various materials commonly used in film production, ensuring flexibility in choosing the right material for your specific application.
7. Is technical support available for installation and operation?
Yes, we provide comprehensive technical support for installation, setup, and operation. Our team is available to assist you in getting the most out of your double head film extrusion blowing machine.
